HOME CARE NURSING BED

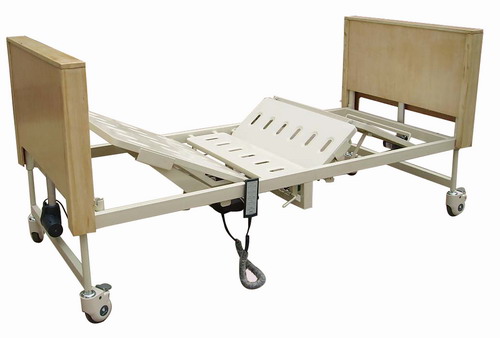

LK2000E ELECTRIC NURSING BED

The electrically powered profiling bed for nursing and home care
Length: 2050mm
Width: 1020mm
Height: 335mm-740mm
Weight Capacity: 200kgs (depend on the motor)
Electric high-lo
Electric back raise
Electric Trendelenberg and reverse
CPR function
4 locking castors

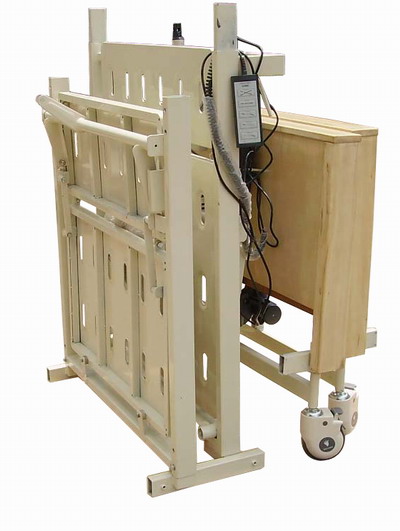

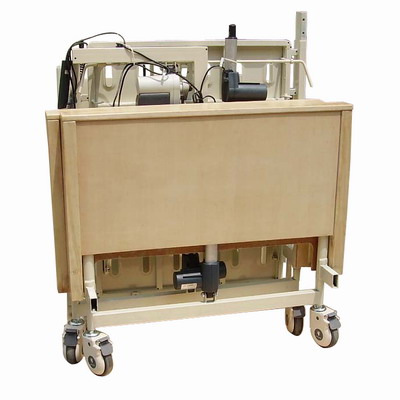

Disassembles for storage

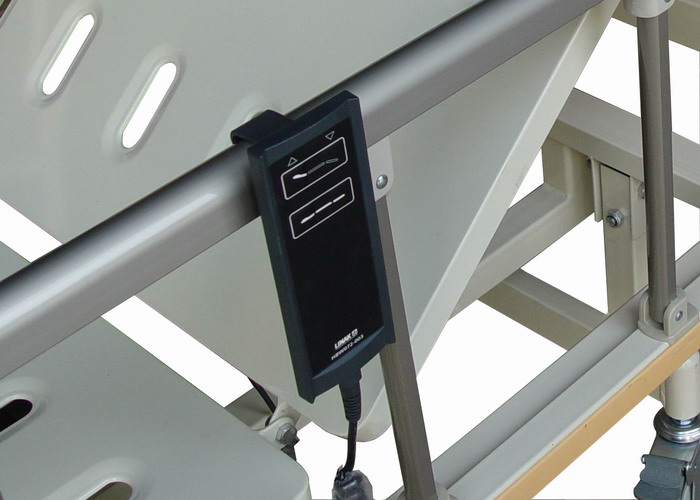

Linak Motor



Back Up  80 5Leg  Up  45 5Height Adjustable 405mm

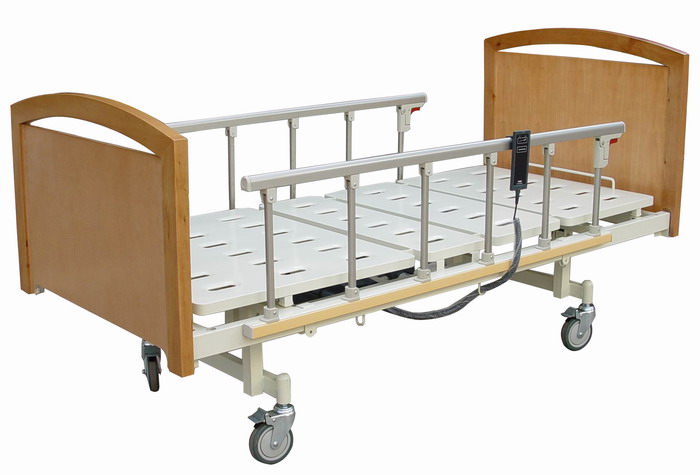

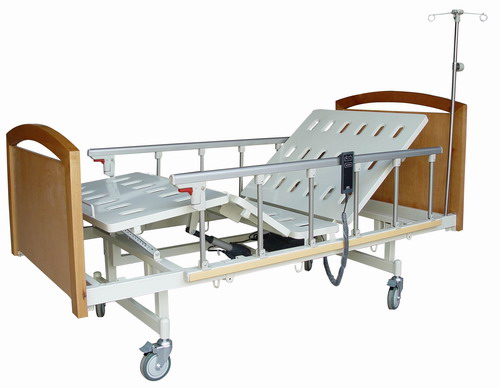

LK2008-2DERW ELECTRIC TWO FUNCTIONS WOODEN BED

Specification:
Head/foot Board: wood panels.
Motor: LINAK motor with two functions.
Overall Dimension: L2000mm x W980mm x H500mm
Bed Surface Dimension: L1900mm x W850mm.
Castor: 5" Lock Wheel
Side Rails: L1480mm x H380mm (Aluminum)
Meal Table: L980mm x W300mm (ABS Material)
I.V. Pole Height: 720mm-1460mm
Max. Weight Capacity: 170kgs

Back Up  80 5

Leg  Up 45 5

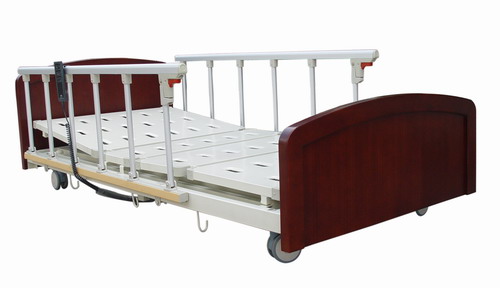

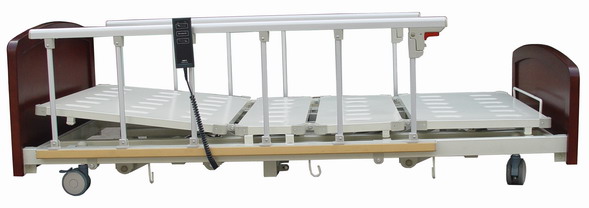

LK2008-3DERUW ELECTRIC ULTRA LOW WOODEN BED

Specification:
Head/foot Board: wood panels in order to blend with furnishings at home.
Motor: LINAK motor LA31C, LINAK controller  HB70
Overall Dimension: L2000mm x W1280mm x H500mm
Bed Surface Dimension: L1900mm x W1200mm.
Lowest / Highest Position: 220mm/500mm
Castor: 125mm PU Wheel
Side Rails: L1480mm x H380mm (Aluminum)
Meal Table: L980mm x W300mm (ABS Material)
I.V. Pole Height: 720mm-1460mm
Max. Weight Capacity: 200kgs



Back Up  80 5Leg  Up  45 5Height Adjustable 280mm

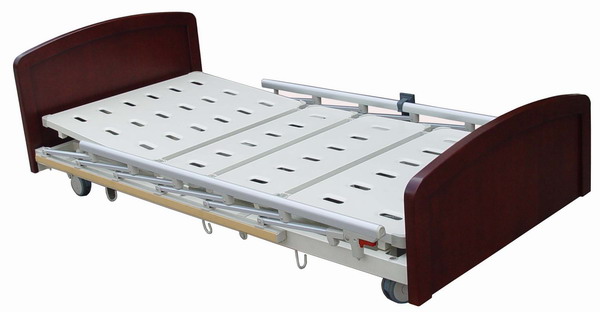

LK2008-3DERW ELECTRIC WOODEN BED (Head/foot Board option)

LK2008-3DERUW HEAD.jpg (15974 字节)

Back Up  80 5Leg  Up  45 5Height Adjustable 280mm

Specification:
Head/foot Board: wood panels in order to blend with furnishings at home.
Motor: LINAK motor model LA31C, LINAK controller model HB70

Overall Dimension: L2000mm x W1280mm x H500mm
Bed Surface Dimension: L1900mm x W1200mm.
Lowest / Highest Position: 280mm/560mm
Castor: 150mm Central Lock Wheel
Side Rails: L1480mm x H380mm (Aluminum)
Meal Table: L980mm x W300mm (ABS Material)
I.V. Pole Height: 720mm-1460mm
Max. Weight Capacity: 200kgs

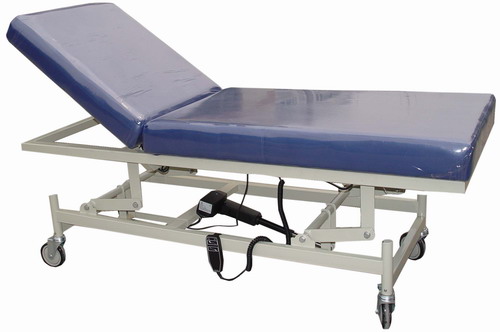

LK2015 ELECTRIC MASSAGE BED

Back Up  80 5 Height Adjustable 350mm
Specification:
Overall Dimension: L1900 x W650 x H800mm
Motor: LINAK motor model LA31C, LINAK controller model HB70
Height from Mattress to Ground: 470mm
Lowest / Highest Position: 500mm/850mm
Max. Weight Capacity: 200kgs
Mattress: High Class Sponge Artificial Leather 120mm Thickness
Castor: 125mm PU Wheel

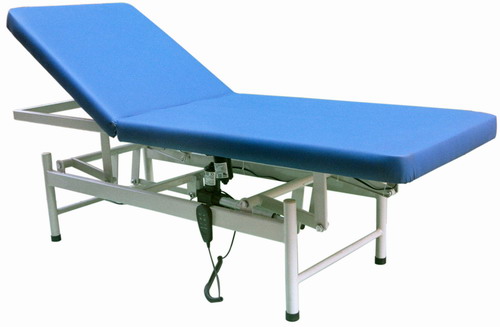

LK2016 ELECTRIC MASSAGE BED

Back Up  80 5 Height Adjustable 350mm
Specification:

Overall Dimension: L1900 x W650 x H800mm
Motor: LINKAN motor model CB12 or LINKAN motor model CB12
Height from Mattress to Ground: 470mm
Lowest / Highest Position: 500mm/850mm
Max. Weight Capacity: 200kgs
Mattress: High Class Sponge Artificial Leather 80mm Thickness

Mattress for Bed



Specification:
Mattress: L1900mm x W850mm x H70mm
               L1900mm x W850mm x H100mm
Mattress Cover: Water-proof Canvas Cloth
Mattress Inner: One side is palm fiber pressed by machine;

                        the other side is high density sponge.
