HOSPITAL AND CLINIC BED

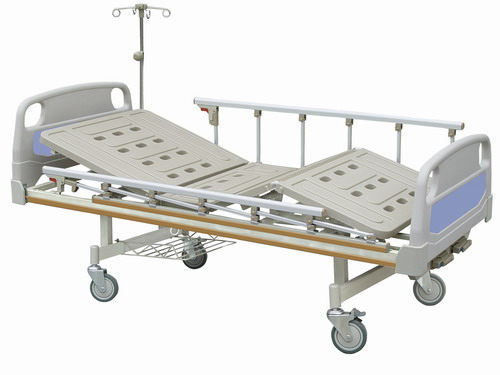

LK2005-2DRW TWO CRANKS MANUAL BED

Back Up  80 5
Leg  Up  45 5

Specification:
Overall: L2100mm x W980mm x H500mm

Bed Surface Dimension: L1900mm x W850mm
Bed Surface Height: 500mm
Side Rails: L1480mm x H380mm (Aluminum)
Meal Table: L980mm x W300mm (ABS Material)
I.V. Pole Height: 720mm-1460mm
Max. Weight Capacity: 170kgs

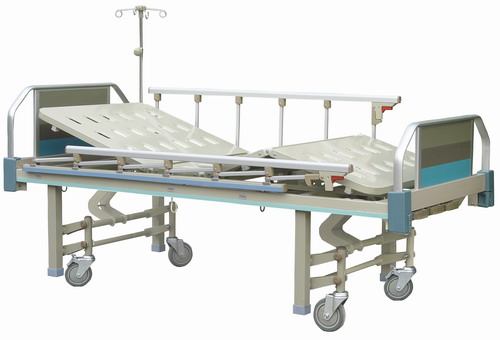

LK2006-3DRW THREE CRANKS MANUAL BED


Back Up  80 5
 Height Adjustable 180mm
Leg  Up  45 5

Specification:
Overall Dimension: L2130mm x W980mm x H500mm
Bed Surface Dimension: L1900xW850mm

Lowest / Highest Position: 500mm/680mm
Side Rails: L1480mm x H380mm (Aluminum)
Meal Table: L980mm x W300mm (ABS Material)
I.V. Pole Height: 720mm-1460mm
Max. Weight Capacity: 170kgs
Mattress: L1900mm x W850mm x H70mm/
               L1900mm x W850mm x H100mm
Mattress Cover: Water-proof Canvas Cloth
Mattress Inner: One side is palm fiber pressed by machine;
                       the other side is high density sponge.

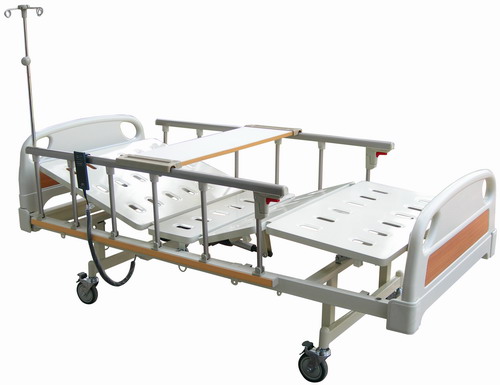

LK2005-2DERW ELECTRIC TWO FUNCTIONS BED

Back Up  80 5 Leg  Up  45 5
Specification:
Head/foot Board: abs panels.
Motor: LINAK motor with two functions.
Overall Dimension: L2000mm x W1280mm x H500mm
Bed Surface Dimension: L1900mm x W1200mm.
Castor: 5" Lock Wheel
Side Rails: L1480mm x H380mm (Aluminum)
Meal Table: L980mm x W300mm (ABS Material)
I.V. Pole Height: 720mm-1460mm
Max. Weight Capacity: 200kgs

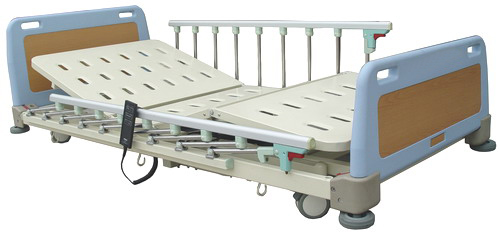

LK2007-3DERUW ELECTRIC THREE FUNCTIONS ULTRA LOW BED

Back Up  80 5
Leg  Up  45 5
Extra low height of 220mm from bed surface to ground, convenient for getting up and down the bed

Specification:
Motor: LINAK motor LA31C, LINAK controller  HB70

Overall Dimension: L2000mm x W1280mm x H500mm
Bed Surface Dimension: L1900mm x W1200mm.
Lowest / Highest Position: 220mm/500mm
Castor: 125mm PU Wheel
Side Rails: L1480mm x H380mm (Aluminum)
Meal Table: L980mm x W300mm (ABS Material)
I.V. Pole Height: 720mm-1460mm
Max. Weight Capacity: 200kgs

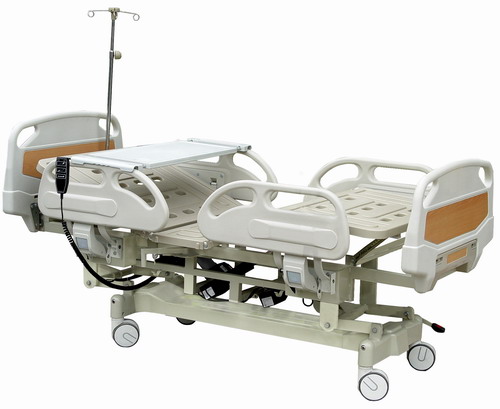

LK2009-3E ELECTRIC ICU BED THREE FUNCTIONS

 Back Up  80 5
 Height Adjustable 250mm

Specification:
Overall Dimension: L1900 x W650 x H800mm
Motor: LINAK motor model LA31C, LINAK controller model HB70
Height from Mattress to Ground: 580mm
Lowest / Highest Position: 460mm/710mm
Max. Weight Capacity: 250kgs
Mattress: High Class Sponge Artificial Leather 120mm Thickness
Castor: 150mm PU Wheel

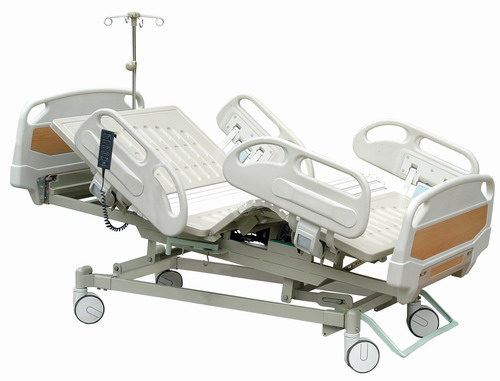

LK2009-5E ELECTRIC ICU BED FIVE FUNCTIONS

Back Up  80 5
Leg  Up  45 5
Height Adjustable 250mm

Forward Tilt 12 5
                  Backward Tilt 12
5

Specification:

Motor: LINAK motor LA31C, LINAK controller HB70


Overall Dimension: L2140mm x W980mm x H460mm / L2140mm x W1170mm x H460mm
Bed Surface Dimension: L1900mm x W850mm/ L1900mm x W1040mm
Lowest / Highest Position: 460mm/710mm
Castor: 150mm Central Lock Wheel
Side Rails: L720mm x H300mm (PP Plastic Material)
Meal Table: L980mm x W300mm (ABS Plastic Material)
I.V. Pole Height: 720mm-1460mm
Max. Weight Capacity: 250kgs
