 Model  XSP- 02

Total Magnification:40~640X
Huygenian Eyepieces:H10X, H16X
Achromatic Objectives:4X, 10X, 40X
Lens Tube:Monocular Vertical Tube
Aperture of The Rotating Diaphragm:¦µ2.8-¦µ15 (Five Steps Total)Reflector:Concave-Plan Reflector,With ¦µ=50mmCoarse
Adjustment Range:50mm
Fine Adjustment Range:1.8~2.2mm
Working Stage:120x120mm
Options:Illuminator(110V/20W,220V/20W Optional)

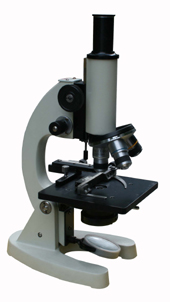

Model XSP- 06

Total Magnification:50~1600X
Huygenian Eyepieces:H5X, H10X, H16X
Achromatic Objectives:10X, 40X, 100X(Oil)
Lens Tube:Monocular Vertical Tube
Reflector:Concave-Plan Reflector,With ¦µ=50mm
Condenser:AbbeType NA=1.25 With Adjustable Diaphragm
And Filter Holder
Coarse Adjustment Range:50mm
Fine Adjustment Range:1.8~2.2mm
Working Stage:Area: 120x120mm
Options:Illuminator (110V/20W, 220V/20W Optional)


ˇˇ

Model XSP-15

Total Magnification:40~1600X
Objectives:Achromatic: 4X, 10X, 40X(R), 100X (R)Oil
Plan-Eyepieces:P10X, P16X
Lens Tube:Binocular 45ˇăInclined Tube With 55-75mm
Distance Between Pupils
Illuminator:Built-in System 12V/20W, Tungsten Halogen Lamp
Condenser:Abbe Type NA=1.25 With Iris Diaphragm
Coaxial Focusing System:Focus Range: 30mm
The Minimum Value of Fine Focus Knob: 0.002mm
With Adjustment of Elasticity And Installation of Random Spacing To Go With Focusing System
Working Stage:Area: 140x140mm
Moving Range of 70x50mm in X-Y Directions
Options:Built-in Kohler System 12V/20W,
Tungsten Halogen Lamp

ˇˇ

Model XSZ-107

Viewing Head: Sliding Binocular Head Inclined at 45ˇă
Eyepieces: WF10X, P16X
Objectives: Achromatic 4X, 10X, 40X(S), 100X(S, Oil)
Stage: Single Layers Mechanical Stage
Condenser: Abbe Type NA=1.25
With Iris Diaphragm & Filter
Illumination Systems:Built-in Illumination,
Halogen Lamp 6V/20W
Plan-concave Mirror

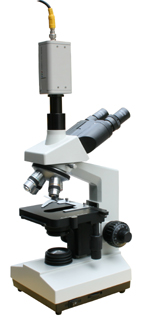

Model XSZ- 207

Viewing Head:Trinocular Head for Video Camera (ˇ°Cˇ±Mount )
Eyepieces:WF10X, P16X
Objectives:Achromatic 4X, 10X, 40X(S), 100X(S, Oil)
Stage:Double Layers Mechanical Stage
Condenser:Abbe Type NA=1.25 With Iris Diaphragm & Filter
Illumination Systems:Built-in Illumination, Halogen Lamp 6V/20W
Plan-concave Mirror



Model XSP- 34

Total Magnification:100~1250X
Achromatic Objectives:10X, 40X(R), 100X(R)Oil
Eyepieces:WF10X, H12.5X
Lens Tube:Monocular 45ˇăInclined Tube, Rotatable 360ˇă
Condenser:Abbe Type NA=1.25 With Iris Diaphragm
Reflector:Concave-Plan Reflector, ¦µ=50mm
Illumination Systems:Electric Illuminator (110V/20W, 220V/20W)
Coarse Adjustment Range:22mm
Fine Adjustment Range:1.3mm
Working Stage:Area: 110x120mm

Model XSP- 35

Total Magnification:100~1600XAchromatic
Objectives:10X, 40X(R), 100X(R)Oil
Eyepieces:WF10X, H16X
Lens Tube:Monocular 45ˇăInclined Tube, Rotatable 360ˇă
Condenser:Abbe Type NA=1.25 With Iris Diaphragm
Reflector:Concave-Plan Reflector, ¦µ=50mm
Illumination Systems:Electric Illuminator (110V/20W, 220V/20W )
Coarse Adjustment Range:22mm
Fine Adjustment Range:1.3mm
Working Stage:Area: 110x120mm

ˇˇ

Model XSP- 36

Total Magnification:100~1250X
Achromatic Objectives:10X, 40X(R), 100X(R)Oil
Eyepieces:WF10X, H12.5X
Lens Tube:Monocular 45ˇăInclined Tube, Rotatable 360ˇă
55-75mm Distance Between Pupils
Condenser:Abbe Type NA=1.25 With Iris Diaphragm
Illumination Systems:Electric Illuminator (12V/20W)
Coarse Adjustment Range:22mm
Fine Adjustment Range:1.3mm
Working Stage:Area: 110x120mm

ˇˇ

ˇˇ

Model XSP- 36F

Total Magnification:100~1250X
Achromatic Objectives:10X, 40X(R), 100X(R)Oil
Eyepieces:WF10X, H12.5X
Lens Tube:Binocular 45ˇăInclined Tube, Rotatable 360ˇă
55-75mm Distance Between Pupils
Condenser:Abbe Type NA=1.25 With Iris Diaphragm
Illumination Systems:Electric Illuminator (12V/20W)
Coarse Adjustment Range:22mm
Fine Adjustment Range:1.3mm
Working Stage:Area: 110x120mm

ˇˇ

Model XSP- 35CCD

Viewing Head:Sliding Binocular Head Inclined at 45ˇă
Eyepieces:WF10X, P16X
Objectives:Achromatic 4X, 10X, 40X(S), 100X(S, Oil)
Stage:Single Layers Mechanical Stage
Condenser:Abbe Type NA=1.25 With Iris Diaphragm & Filter
Illumination Systems:Built-in Illumination, Halogen Lamp 6V/20W
Plan-concave Mirror

 Accessories For XSP-35CCD:ˇˇ
