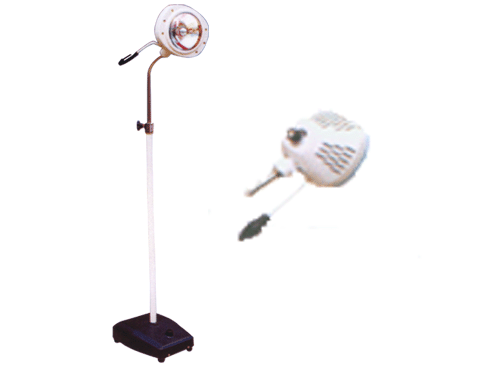

L751-II　COLD LIGHT OPERATING LAMP WITH ONE REFLECTORS (TUNGSTEN HALOGEN LAMP)
Main Technical Data
llluminance	L751-II≥20000Lx L751≥12000Lx
Color Temperature	L751-II 3500±500K L751 3000±500K
Mains Voltage	～220V±22V  50Hz±1Hz
Rated Voltage of Bulb	24V
Rated Power of Bulb	L751-II 50W L751 25W

L734-II　COLD LIGHT SHADOWLESS OPERATING LAMP WITH 4 REFLECTORS (TUNGSTEN HALOGEN LAMP)
Main Technical Data
llluminance	L734-II ≥40000Lx L734 ≥40000Lx  734 ≥24000Lx
Color Temperature	L734-II 4500±500K L734、734 4000±500K
Mains Voltage	～220V±22V  50Hz±1Hz
Rated Voltage of Bulb	24V
Rated Power of Bulb	25W

L2000-3E VERTICAL COLDLIGNT EMERGENCY OPERATION SHADOWLESS LAMP WITH 3 LARGE REFLECTORS
llluminance	60000±500LUX
Color Temperature	4500±500K
Diaof Light Spot	100～250
Power Voltage	220/24VVAC/DC
Rated Voltage of Bulb	24V
Rated Power of Bulb	50W
Duration of Extended Power Supplying	2≥HR
Charge Type of Storage Battery	Quick charge and floating charge

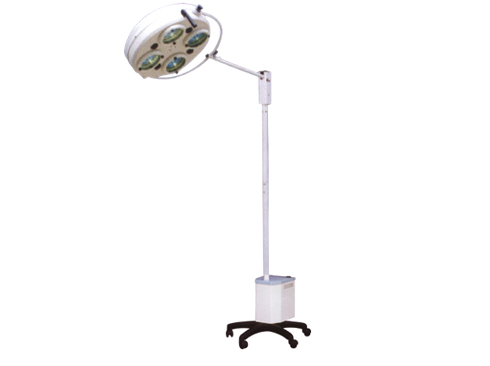

L734E VERTICAL COLDLIGNT EMERGENCY OPERATION SHADOWLESS LAMP WITH 4 LARGE REFLECTORS
llluminance	40000±500LUX
Color Temperature	4000±500K
Diaof Light Spot	100～200
Power Voltage	220/24VVAC/DC
Rated Voltage of Bulb	24V
Rated Power of Bulb	25W
Duration of Extended Power Supplying	3≥HR
Charge Type of Storage Battery	Quick charge and floating charge

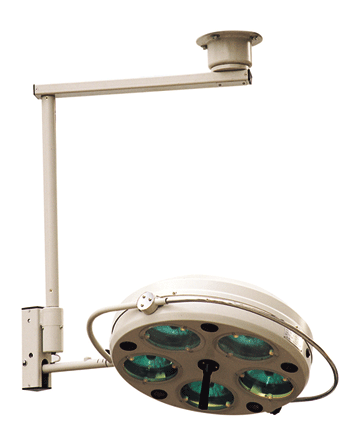

L735　COLD LIGHT SHADOWLESS OPERATING LAMP WITH 5 REFLECTORS (TUNGSTEN HALOGEN LAMP)
Main Technical Data
llluminance	L735-II ≥60000Lx L 735 ≥50000Lx  735 ≥30000Lx
Color Temperature	L735-II 4500±500K L735、735　4000±500K
Mains Voltage	～220V±22V  50Hz±1Hz
Rated Voltage of Bulb	24V
Rated Power of Bulb	25W

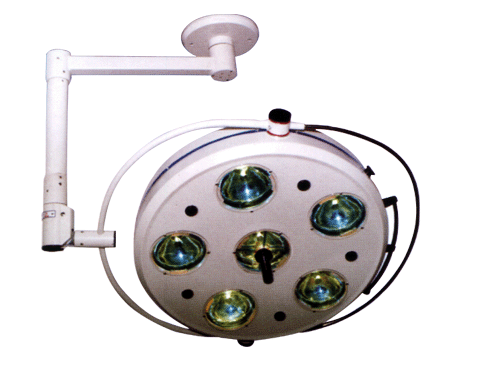

L2000-6 COLD LIGHT SHADOWLESS OPERATING LAMP
Main Technical Data
llluminance	80000～120000Lx(3Steps Adjustable)
Color Temperature	4500±500K
Mains Voltage	～220V±500V  50Hz±1Hz
Rated Voltage of Bulb	24V
Rated Power of Bulb	50W
The Lowest Height for Installation	3000mm

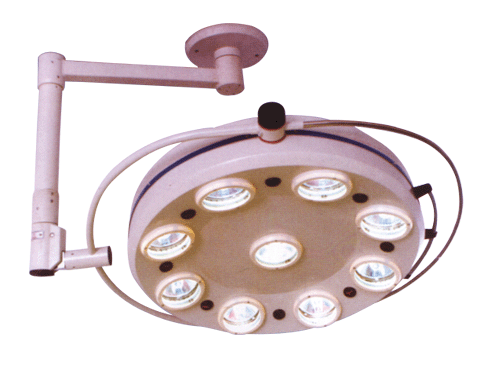

L739-II COLD LIGHT SHADOWLESS OPERATING LAMP WITH 9 REFLECTORS (BUILT-IN TYPE)
Main Technical Data
llluminance	L739-II≥90000Lx  739-II≥54000Lx
Color Temperature	4000±500K
Mains Voltage	～220V±500V  50Hz±1Hz
Rated Voltage of Bulb	24V
Rated Power of Bulb	25W

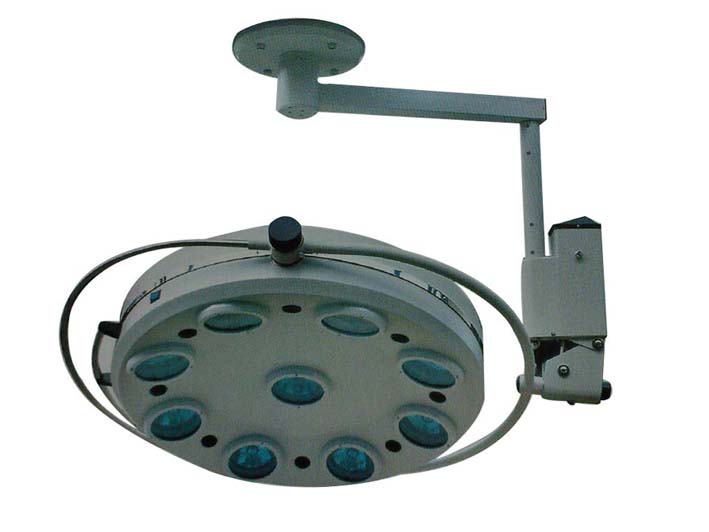

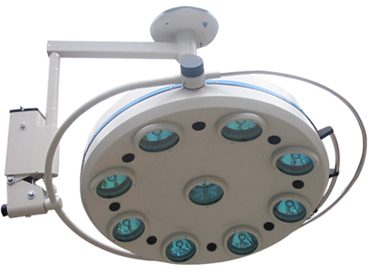

L739　COLD LIGHT SHADOWLESS OPERATING LAMP WITH 9 REFLECTORS
Main Technical Data
Illuminance	L739 ≥90000Lx  739 ≥54000Lx
Color Temperature	4000±500K
Mains Voltage	～220V±22V  50Hz±1Hz
Rated Voltage of Bulb	24V
Rated Power of Bulb	25W

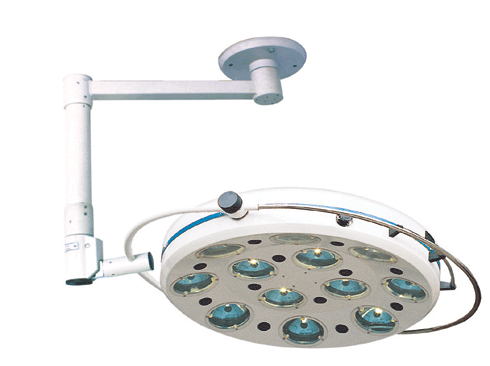

L7412-II　COLD LIGHT SHADOWLESS OPERATING LAMP WITH 12 REFLECTORS (BUILT-IN TYPE)
Main Technical Data
Illuminance	L7412-II 80000～120000Lx(3Steps Adjustable) L7412-II 48000～72000Lx(3Steps Adjustable)
Color Temperature	4500±500K
Mains Voltage	～220V±22V  50Hz±1Hz
Rated Voltage of Bulb	24V
Rated Power of Bulb	50W

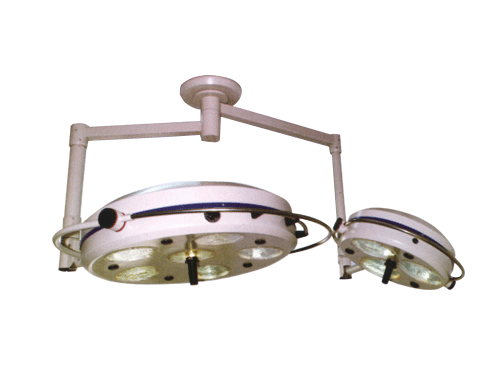

L2000 6-3 COLD LIGHT SHADOWLESS OPERATING LAMP WITH SUPPLEMENTARY LAMP
Main Technical Data
llluminance of Main Lamp	80000～120000Lx(3Steps Adjustable)
llluminance of Supplementary Lamp	60000Lx
Color Temperature	4500±500K
Mains Voltage	～220V±22V  50Hz±1Hz
Rated Voltage of Bulb	24V
Rated Power of Bulb	50W
The Lowest Height for Installation	3000mm

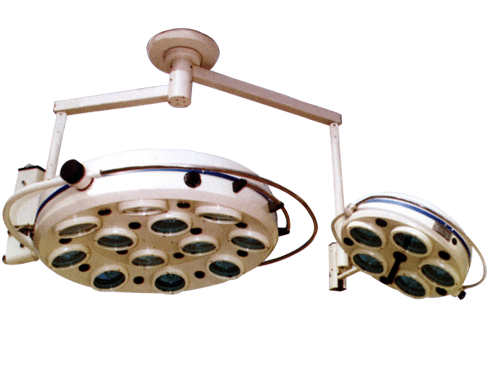

ZMD-II COLD LIGHT SHADOWLESS OPERATING LAMP WITH SUPPLEMENTARY LAMP (TUNGSTEN HALOGEN LAMP)
Main Technical Data
inluminance of Main Lamp	ZMD-II 80000～140000Lx(4Steps Adjustable) ZMD 80000～120000Lx(4Steps Adjustable)
lluminance of Supplementary Lamp	ZMD-II≥60000Lx ZMD≥50000Lx
Color Temperature	ZMD-II 4500±500K ZMD 4000±500K
Mains Voltage	～220V±22V  50Hz±1Hz
Rated Voltage of Bulb	24V
Rated Power of Bulb	25W
